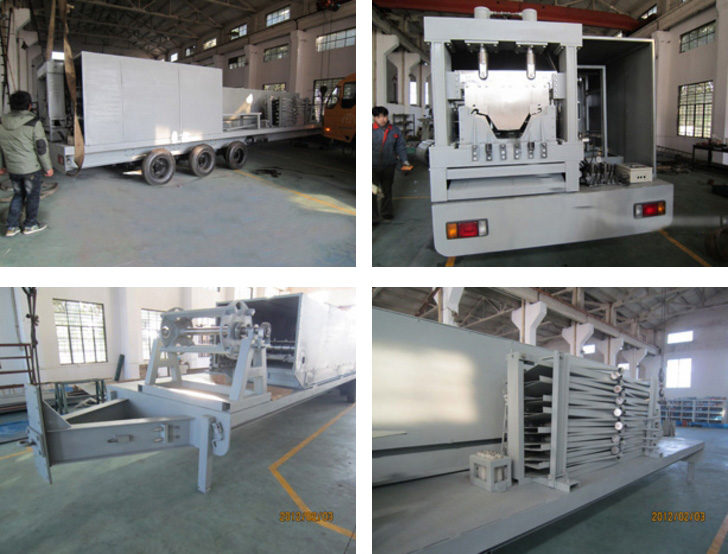

MIC120 K-SPAN CURVED MACHINE

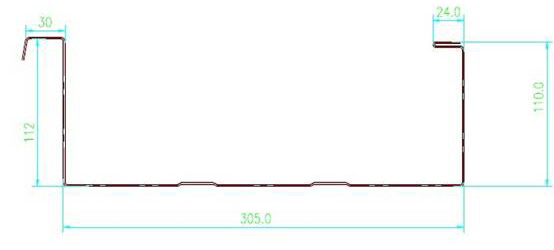

Drawing:
Technical parameter:
-
Width of input material width: 610mm
-
The width after forming: 305mm
-
Thickness of material: 0.7-1.5mm
-
Roller forming station: 14stations
-
Diameter of shaft: ￠60mm
-
Drive for the machine :7.5kw
-
Size of roll forming machine: approx 6.m*1.2m*1.6m
-
Hydraulic station: 5.5 KW
-
Material of cutting blade: Cr12
-
Transmission:1.2inch chain drive
-
Material of roller:45# forge steel,quenching and hard chrome HRC58○-62○ Chrome coated 0.05mm
-
Control system: PLC control, Omron/Mitsubishi made in Japan
-
Way of cutting:hydraulic cutting

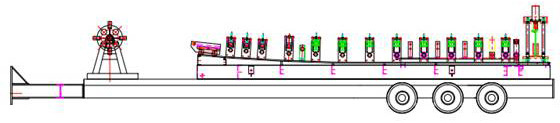

Flow chart:
Manual decoiler—feeding—roll forming—hydraulic cut-off—outables
