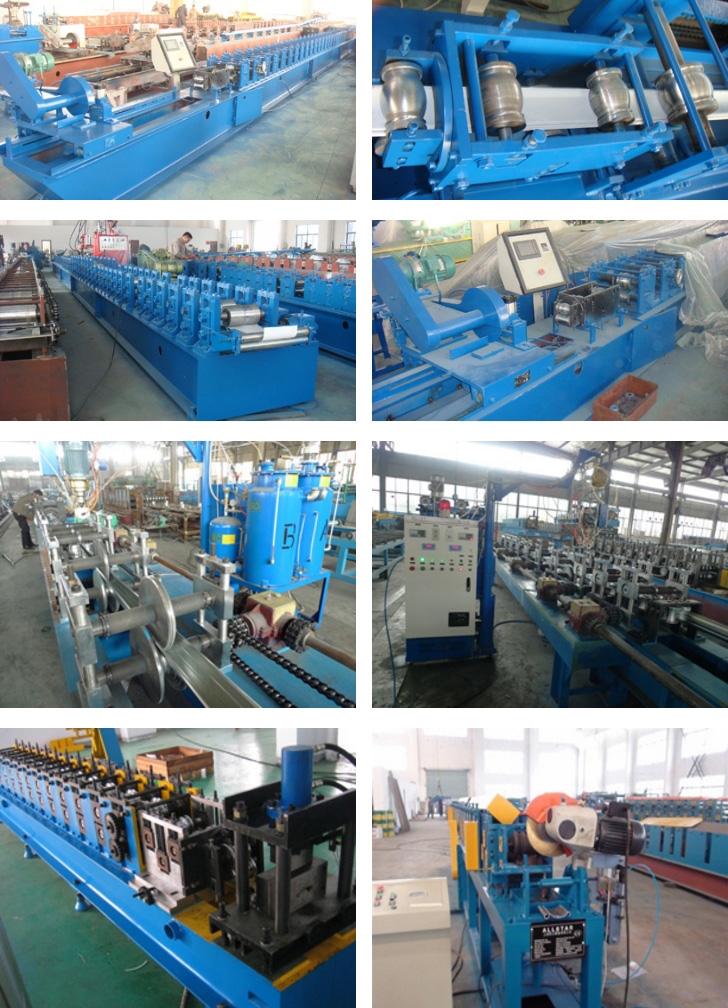

European roller shutter forming machine

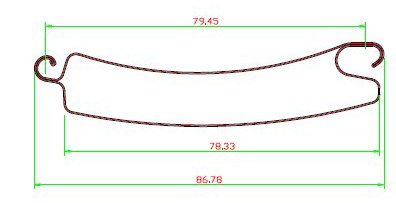

Drawing:

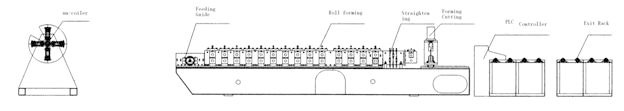

Production Flow:

Put the steel coil on the un-coiler—→Feeding guide equipment—→Roll-forming Machine—→Foaming machine —→Adjusting device —→ Punching device----Flying saw cutting—→finished products on stacker

Specifications:

1	Material thickness	mm	0.4-0.6mm Full hard,G550Mpa
2	Forming speed	m/min	12-15
3	Roll station	/	40
4	Main power	kw	7.5
5	Cutting power	kw	2.2
6	Control system	/	PLC panasonic/omron/simens/mitsubishi
7	Drive	/	Chain drive
8	Decoiler	1.5	1.5T manual decoiler
