Guardrail Curving Machine

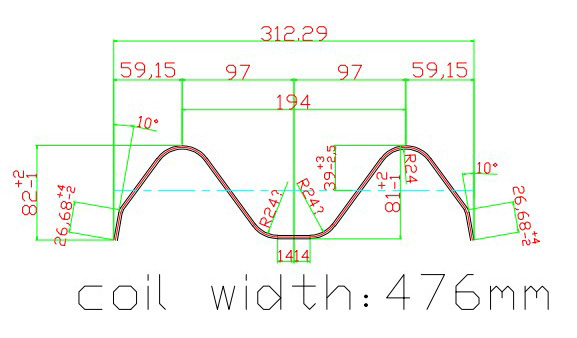

Profile drawing:

Specification：

3 rolls curving
thickness:max 3.5mm
Shaft dia:120mm
Motor power:3kw
Machine size: about 1.5mx10m.x1.4m
Machine weight:about 1 tons

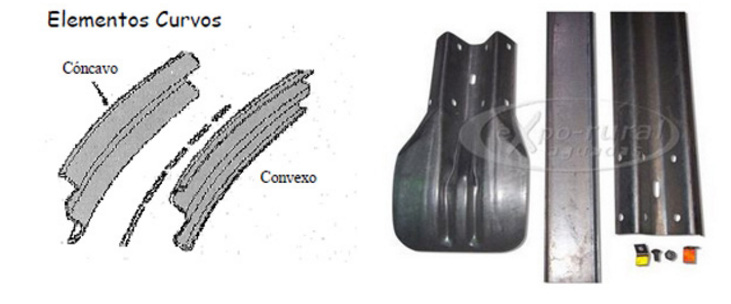

The profile:

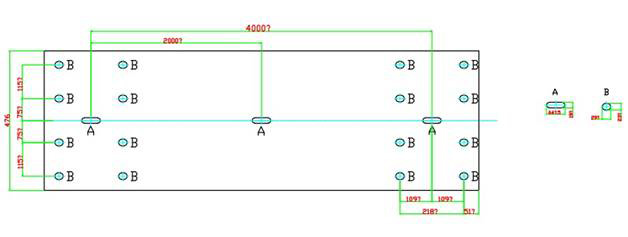

Holes size punching:

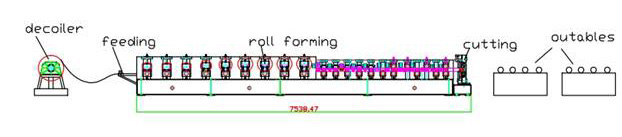

Flow Chart:
